Locomotive Specifications

TOBY

ENGINE : KUBOTA 3 CYL 13hp 650cc DIESEL

TRANSMISSION : AUTO

CHAIN DRIVE : ALL WHEELS (8)

WHEEL DIAMETER : 200mm (8")

LENGTH : 3mtrs (10ft)

BODY WIDTH : 560mm (22")

HEIGHT : 760mm (30")

BODY : 1.6mm (1/16th) THICK STEEL

WEIGHT : 650kg (0.65t)


TRACK


7-1/4" GAUGE 184mm

MAINLINE LENGTH : 430mtrs

SIDINGS : 147mtrs

TOTAL TRACK LENGTH : 577mtrs

TRACK GRADIENT : 1 in 40 (max)

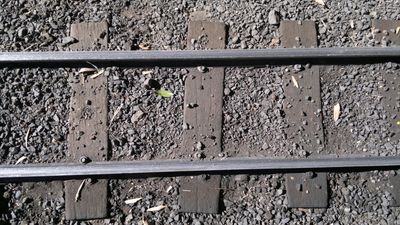

ALUMINIUM TRACK with STEEL POINTS

WOODEN SLEEPERS : 2875 (approx) 75mm x 50mm x 400mm HARDWOOD

SCREWS : 11'500 (approx)

Locomotive Specifications

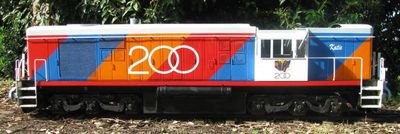

KATIE

 ENGINE : KUBOTA 2Cyl 10hp 600cc DIESEL

TRANSMISSION : AUTO

CHAIN DRIVE : REAR WHEELS (6)

WHEEL DIAMETER : 150mm (6")

LENGTH : 3mtrs (10ft)

BODY WIDTH :380mm (15")

CAB WIDTH : 545mm (21-1/2")

HEIGHT : 760mm (30")

BODY :  1.6mm (1/16th) THICK STEEL

WEIGHT : 650kg (0.65t)
